Key Locking Screw Thread Inserts 303SS M8 Easy To Install And Operate
Product information
When the bolt socket is used for repair, it can be said that it has the effect of resuscitation, allowing the damaged machinery to run well, just like many machines are likely to be scrapped due to a rivet problem, but you use the bolt socket It's different, it can make the machine run well. The bolt sleeve has a smooth appearance, simple and easy to understand, does not care about the environment, and at the same time has the characteristics of no rust, to avoid the use of the machine due to rust, which will cause unnecessary losses.
Loosening caused by compression of the bearing surface. Due to the large contact stress on the bearing surface of the bolt head or nut, the surface of the connected part will have a plastic ring-shaped depression. In use, if plastic deformation continues to occur (called bearing surface depression), the elongation of the bolt will decrease, the pre-tightening force in the bolt will decrease, and the nut will easily loosen and rotate.
Specification
| Color | Natural colour |
| Application | Light alloy, heavy industry, medical treatment, foundry industry, others |
| Brand Name | AVIC-Flight |
| Standard | KKV |
| Material | Stainless steel SUS303 |
| Model | Thin wall, Heavy duty |
| Metric Thin wall Type (Leave message for Metric Heavy Duty/BritishThin Wall/British Heavy Duty) |
Internal Thread Class GH
mm | External Thread Class GG
mm | Length
mm | Tap Drill
mm | Thread Tap Class GH
mm | Tap Depth Mn.
mm | Removal Drill
mm | Removal Depth
mm |
| M5×0.8 | M8×1.25 | 8 | 6.9 | M8×1.25 | 9.5 | 5.5 | 4 |
| M6×1.0 | M10×1.25 | 10 | 8.8 | M10×1.25 | 11.5 | 7.5 | 4.75 |
| M8×1.25 | M12×1.25 | 12 | 10.8 | M12×1.25 | 13.5 | 9.5 | 4.75 |
| M8×1.0 | M12×1.25 | 12 | 10.8 | M12×1.25 | 13.5 | 9.5 | 4.75 |
| M10×1.5 | M14×1.5 | 14 | 12.8 | M14×1.5 | 15.5 | 11.5 | 4.75 |
| M10×1.25 | M14×1.5 | 14 | 12.8 | M14×1.5 | 15.5 | 11.5 | 4.75 |
| M12×1.75 | M16×1.5 | 16 | 14.75 | M16×1.5 | 17.5 | 13.5 | 4.75 |
| M12×1.25 | M16×1.5 | 16 | 14.75 | M16×1.5 | 17.5 | 13.5 | 4.75
|
Feature
1: threaded mounting pin sheath may effectively enhance the fastening strength and safety threaded hole, a threaded hole extended periods of time, improve product quality.
2: In some spark plugs, molds and other machinery and require frequent removal temperature of the screw holes on the corrosive bolt means threaded screw hole jacket may be enhanced wear resistant-corrosion resistant.
3: The bolt thread sheath has a repair function. When the machine screw hole thread for various reasons when the slide wire mess teeth, using a dedicated pin sheath wire tapping thread tapping, threaded bolt mounted jacket, slide wire mess of the threaded holes can be quickly repaired.
4: The installation tools and installation methods of the bolt socket are simple, and the installation is simple and can save time and improve work efficiency.
5: Bolt sockets are installed on machinery molds, products that require very high threaded hole strength and fastening safety performance on products such as aerospace industry, products, automobile industry, and shipbuilding industry.
Application
1. Quickly and effectively repair damaged threads on a variety of materials.
2, the reinforcing thread strength lightweight material, such as medium-sized non-ferrous metal casting, die casting base material and the toughness of the ferrous metals, are often used as the screw is screwed into the screw.
3. It is especially suitable for use in environments requiring high-strength internal threads, with strong seismic and pull-out resistance. It has higher strength than commonly used wire thread inserts, and is firmly connected to the base body, and will not be separated from the base body even when working under shock or vibration environment.
4. Remedy the wrong hole and avoid reprocessing the wrong part.
Product Tags:
|
|

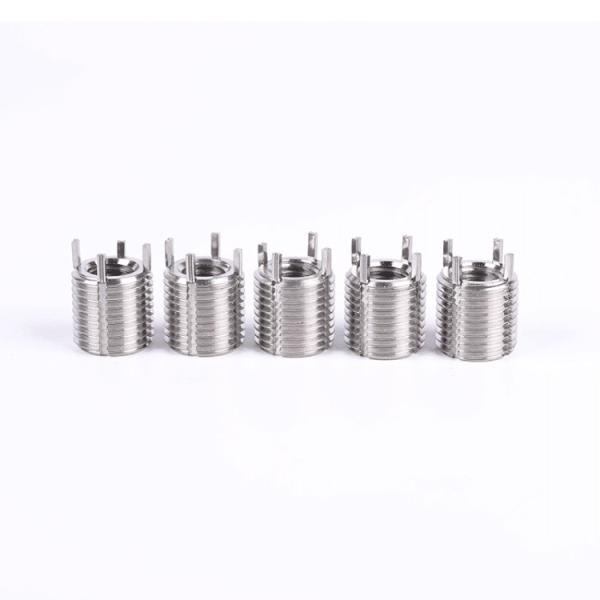

Thin Wall 303SS M8 Keylocking Threaded Inserts Helicoil 12mm Length Images
|
