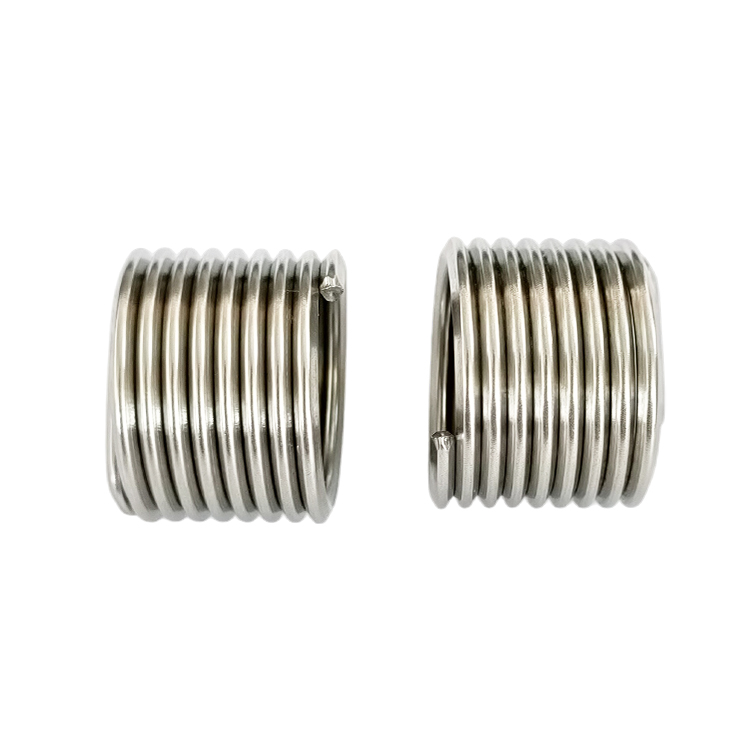

Type SUS304 Wire Thread Insert M2-M20 Used In Sheet Metal 1 - 3D Length
Information
The steel wire insert is a kind of threaded intermediate connector based on the basic thread profile structure and made of high-strength diamond steel wire. Its shape is like a spring. The outer thread formed on the outer surface of the screw sleeve is closely attached to the inner thread of the bottom hole by the radial elastic force of the screw sleeve.
Advantage
1. Increase the bearing surface. It is used for parts that require a strong connection force and cannot increase the diameter of the screw hole.
2. Anti-loosening. It is especially used in occasions where products such as spacecraft require a high insurance factor.
3. Easy to maintain. Install the damaged screw hole into the steel wire screw sleeve and continue to use it after repairing to avoid the possibility of damage to the work piece.
The difference between tailless screw sleeve and tail screw sleeve
◆ Difference 1
The installation of the tailless screw sleeve is relatively simple, non-directional, and convenient to install, eliminating the cumbersome links of removing the installation handle of the ordinary tailed wire screw sleeve.
Save time and improve efficiency!
◆ Difference 2

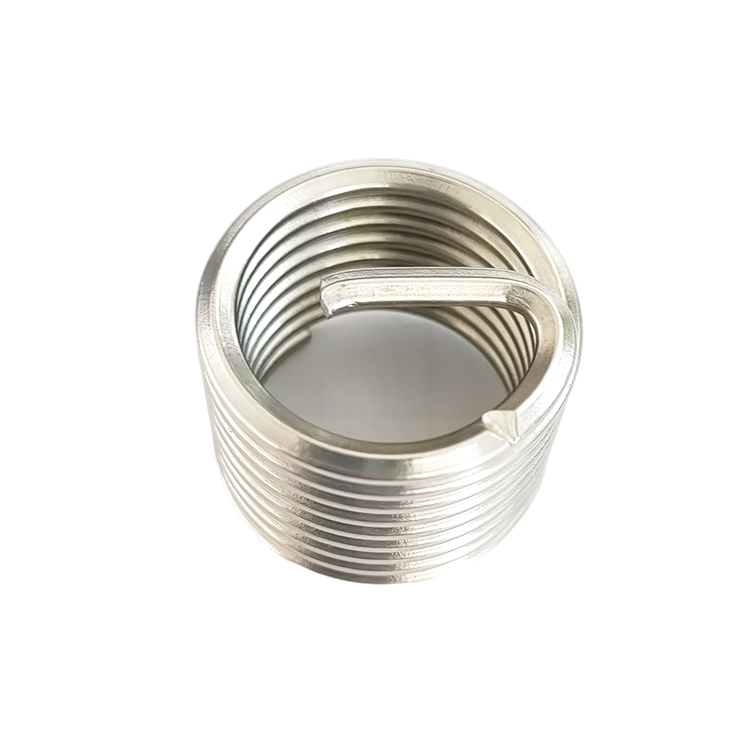

The installation of the tailless screw sleeve is extremely convenient without the trouble of removing the tail handle. After the installation of the ordinary tail wire threaded sleeve is completed, the installation handle needs to be broken. After the tail is removed, it is not easy to clean up, which is easy to cause retention, and in serious cases, it will affect the quality of the entire product.
◆ Difference 3
There are complete installation tools for tailless wire thread inserts, including pneumatic tools, electric tools, and supporting tool brackets for batch installation, which are suitable for mass installation and use, and are very helpful to improve work efficiency!
Paramter
| Type: | Free Running, Screw Lock |
| Finish | Natural colour, Green, Red, Blue |
| Application | Light alloy, heavy industry, medical treatment, foundry industry, others |
| Brand Name | AVIC-Flight |
| Standard | DIN8140,MS21209 |
| Material | 304 Stainless steel 1.4301, 316 Stainless steel 1.4401, Inconel X750, Brass, Other |
| Installation | Direct installation |
| Name | Thread Inserts |
| Measurement system | Metric, Imperial (Inch) |
| Place of Origin | China |
| Model Number | FRM1.6-M56, SLM1.6-M56, other |
| Item name | Stainless steel Thread Inserts |
| Thread | ISO Metric, Unified, Whitworth |
| Internal Thread Size | M1.6-M56 |
Application
In addition to aerospace and military applications, wire thread inserts are also widely used in civil products such as railway transportation, construction machinery, textile machinery, medical equipment, papermaking, weapons, radar, rockets, ships, steam turbines, and chemicals. In other countries, it is not only used in aircraft, aerospace industry, but also used in ships, automobiles, machine tools, electrical machinery, textile machinery and other industrial and instrumentation. Even in camera, sewing machine, modular furniture and other light industrial products, but also widely used in this wire sets.
FAQ
Q: Are you a factory or trading company?
A: Our factory has been professionally producing fasteners for 20 years
Q: Can you produce the goods as customized design?
A: Of course, we have enough experience to do OEM and ODM, we are welcome you send us your new design, latest style or sample. You can save time, money and own the best service from us.
Q: How does your company and factory do regarding quality control?
A: Quality is top priority.
Q: When will you make the delivery?
A: We can make the delivery within 15-20 working days according to the quantity of your order.
Q: Do you have a price list?I need your price list of all your products.
A: We do not have a price list for all our products. Because there are too many items to cover all prices on one list. And prices are always changing since the producing cost changes. If you want to check any price of our product, please contact us freely. We’ll offer you soon!
Product Tags:
|
|
SS304 Stainless Steel Screw Inserts M2-M20 Used In Sheet Metal 1 - 3D Length Images
|
