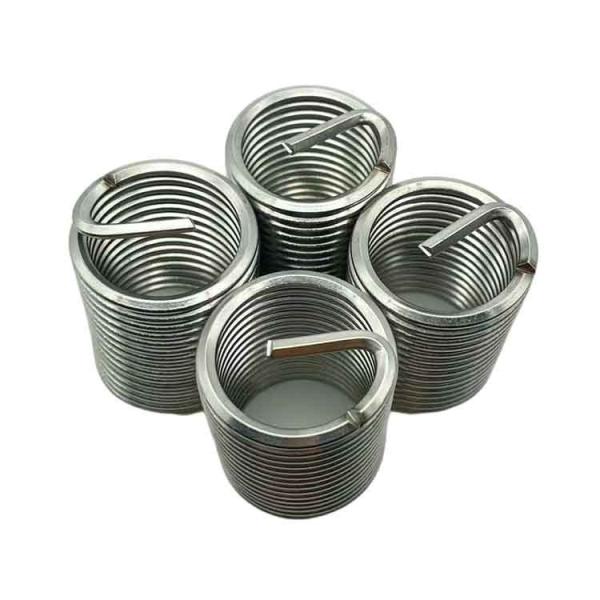

M5 * 0.8 * 1.5D Wire Inserts Stainless Steel M26 Spring Coil Insert

M5 * 0.8 * 1.5D Thread Insert Stainless Steel M26 Spring Coil-Insert

Introduction

Wire thread insert is a new type of internal threaded fastener, suitable for threaded connection. It is screwed into and fastened in the threaded hole of one of the connected parts to form a standard internal thread. The bolt (or screw) is then screwed into it. Also known as threaded wire sleeve, wire sleeve for short. It is a spring-like internal and external thread concentric body precisely processed by cold-rolled diamond-shaped stainless steel wire with high strength, high precision and smooth surface. It is mainly used to strengthen and protect the internal thread of low-strength materials.

Features

(1) The diameter of the wire thread insert in the free state is slightly larger than the diameter of the screw hole into which it is inserted. When assembling, the wire thread insert is subjected to a special wrench to make its diameter smaller and enters the threaded hole that has been tapped with a special tap. After being installed, the wire threaded sleeve produces a spring expansion effect, making it firmly fixed in the threaded hole, and will never be brought out with the screw out.

(2) Increase the load-bearing capacity and fatigue strength of the threaded connection: the wire threaded sleeve makes the screw and the internal threaded hole for the installation of the wire threaded sleeve form an elastic connection, thus eliminating the pitch and tooth form half-angle error between the internal and external threads. The load on each thread is evenly distributed over the specified length, thereby strengthening the internal thread and damping vibration, so the fatigue strength of the threaded connection of the parts can be improved.

(3) Wear resistance: The wire thread insert is precisely wound by extremely hard cold-rolled stainless steel wire, the spiral surface hardness can reach HRC43～50, and the mirror-like surface (the smoothness can reach 2～4μm) reduces friction and wear. , Can reduce the torque generated by friction on the screw by 90%, so that the maximum pre-tightening torque and screw tension can be obtained with the minimum screw torque to prevent the screw from loosening, so that the screws of various materials are in the best use condition.

Use

1. Enhance connection strength and improve connection conditions. Low-strength materials such as aluminum and magnesium are used for wire thread inserts, which can avoid slippage and wrong teeth and obtain excellent connection performance.

2. Wear resistance. Used in frequently disassembled parts, it can greatly improve the service life of the thread.

3. Increase the bearing surface. It is used for parts that require a strong connection force and cannot increase the diameter of the screw hole.

4. Anti-loosening. It is especially used in occasions where products such as spacecraft require high insurance coefficients.

5. Easy to maintain. Install the damaged screw hole into the steel wire screw sleeve, and you can continue to use it after repair.

Why Choose Us?

1. A factory with more than 20 years' experience in manufacturing of Thread Inserts.
2. Competitive pricing & military quality.
3. Quick replies to quotations and requests for information.
4. Timely deliveries, rich experience in IMP and EXP.
5. Advanced R & D center, more than one thousand types of threaded inserts and tools.
6. Strict quality control system, passed the SGS and ISO9001: 2015.
7. Comprehensive after-sales support and troubleshooting.
8. Famous brands in China.
9. High quality enterprises in the region.

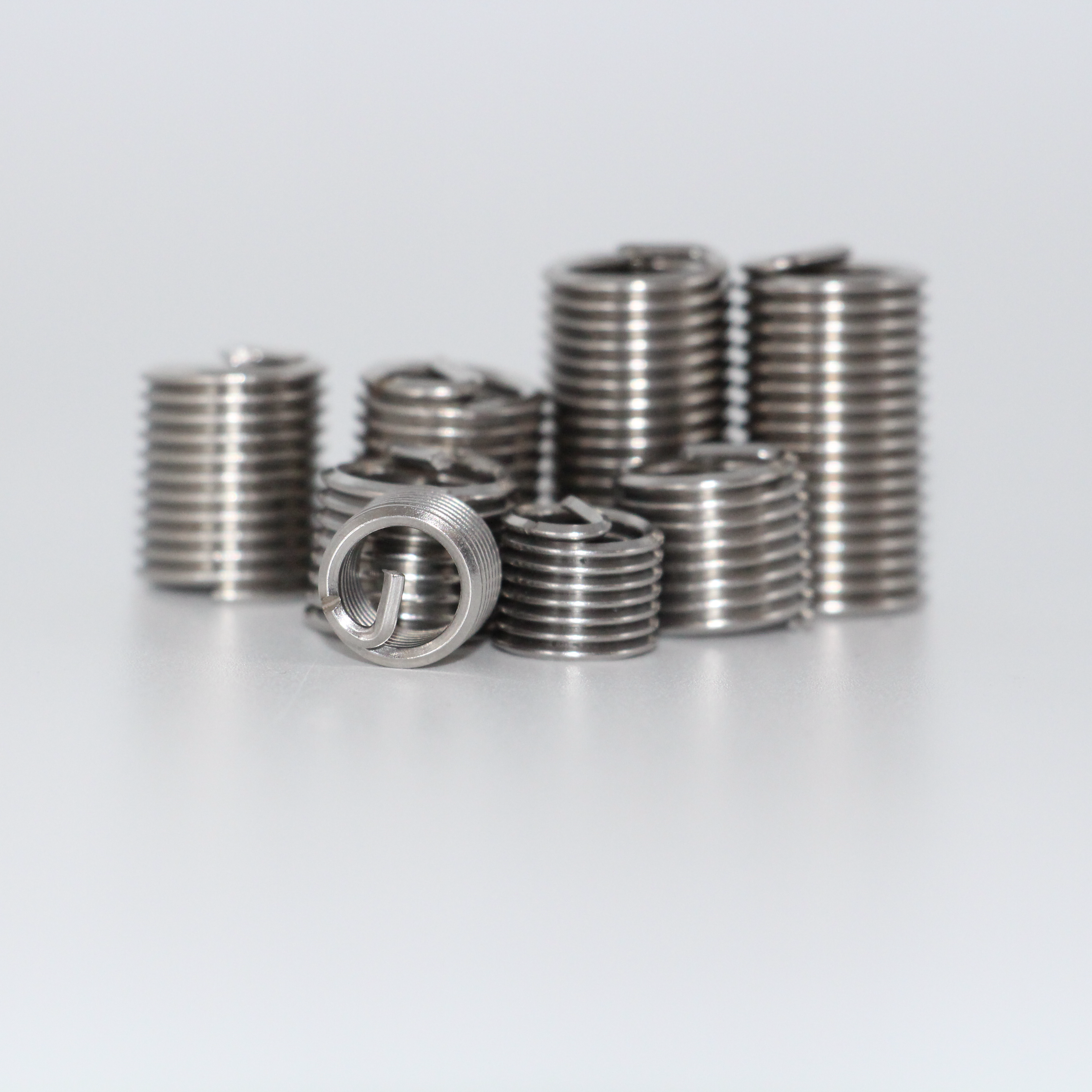

M5 * 0.8 * 1.5D Wire Inserts

M26 Spring Coil Insert

M5 * 0.8 * 1.5D Spring Coil Insert

M5 * 0.8 * 1.5D Wire Inserts Stainless Steel M26 Spring Coil Insert Images
