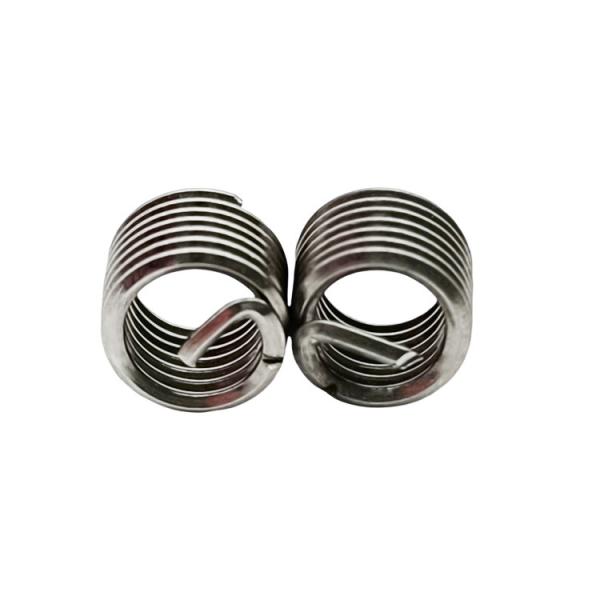

Marine Fasteners Keensert Stainless Steel Helicoils M8*1.25 1d 1.5d 2d 2.5d

Name: Marine Fasteners Keensert Stainless Steel Helicoils M8125 1d 15d 2d 25d
Brand: AVIC-Flight
Price: 1 USD

Quality Marine Fasteners Keensert Stainless Steel Helicoils M8*1.25 1d 1.5d 2d 2.5d wholesale

Brand Name : AVIC-Flight

Model Number : M2-M20

Certification : ISO9001：2015，ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 50000pcs/day

Delivery Time : 15 days

Packaging Details : 1000pcs/bag

Materials : 304 Stainless Steel

Lead Time : 5-10 working days

Samples : Welcome

Delivery term : By DHL,UPS,TNT,FedEx,EMS,By Air

Standard : ISO Metric/UNC/UNF

Specifications : M2-M20

Certificate : ISO 9001/SGS

Thread : coarse, fine

Contact Now

Spring Coil M8*1.25 1d 1.5d 2d 2.5d Marine Fasteners Stainless Steel Keensert Helicoils

Information

Wire thread inserts are incorporated into softer metallic materials to give them steel-like thread performance. This has enabled industries to use lighter weight materials such as aluminum without having to give up thread strength of their fasteners.

Advantage

Free-Running tanged screw thread inserts are greater in diameter than the tapped hole into which they are installed. In the assembly operation, the torque applied to the tang reduces the diameter of the leading coil and permits it to enter the tapped thread. When the torque or rotation is stopped, the coils expand with a spring-like action, anchoring the insert permanently in place against the tapped hole.

Materials	Brass,Stainless Steel,Carbon steel1215,Other materials
Finish	Zn/Ni/Tin/Au plating,Black Oxide,Anodizing,Passivated and so on.
Type	Wire thread insert/Keylocking threaded insert/Solid threaded insert
Thread	Internal thread A:as per ISO6H
Certification	ISO9001:2015
Lead Time	5-10 working days
Samples	Welcome

Thread inserts parameter

Options
Material		304H		321		316		Inconel X750
Standard		DIN-8140				MS-21209
Model	Metric	M3	M4	M5	M6	M8	M10	M12	M16
	British	6-32	8-32	10-32	1/4-20	1/2-13		5/8-11
Length		1d		1.5d			2d
Accuracy		Green	Red	Golden	Blue	Non	Customized

DIMENSION OF DIN8140 WIRE THREAD INSERTS
D	P	L1	d1		D	P	L1	d1
			min	max				min	max
M2	0.4	1d	2.6	2.8	M8	1.25	2d	9.85	10.1
		1.5d					2.5d
		2d			M10	1.5	1d	12.1	12.5
		2.5d					1.5d
M2.5	0.45	1d	3.3	3.5			2d
		1.5d					2.5d
		2d			M12	1.75	1d	14.4	14.8
		2.5d					1.5d
M3	0.5	1d	3.8	4			2d
		1.5d					2.5d
		2d			M16	2	1d	19	19.4
		2.5d					1.5d
M4	0.7	1d	5.15	5.35			2d
		1.5d					2.5d
		2d			M20	2.5	1d	23.7	24.2
		2.5d					1.5d
M5	0.8	1d	6.35	6.6			2d
		1.5d			M24	3	1d	28.6	29.1
		2d					1.5d
		2.5d					2d
M6	1	1d	7.6	7.85	M30	3.5	1d	35.2	35.7
		1.5d					1.5d
		2d					2d
		2.5d			M36	4	1d	42.1	42.6
M8	1.25	1d	9.85	10.1			1.5d
		1.5d					2d

Marine Fasteners Keensert Stainless Steel Helicoils M8*1.25 1d 1.5d 2d 2.5d

Marine Fasteners Keensert Stainless Steel Helicoils M8*1.25 1d 1.5d 2d 2.5d

FAQ

1. How to contact us ?
A: You can send inquiry of our products,it will be replied within 6 hours;And you can contact dirrectly with us through TM or WhatsApp,Skype as you like.

2. What information should I give to you for inquiry?
A: If you have drawings or samples,pls feel free to send us,and tell us your special requirements such as material ,tolerance,surface treatments and the amount you need,ect .

3. What about the delivery day?
A: The delivery date is about 10-15 days after receipt of payment.

4. What about the payment terms?
A: TT,and we can also consult accroding to your requirement.
