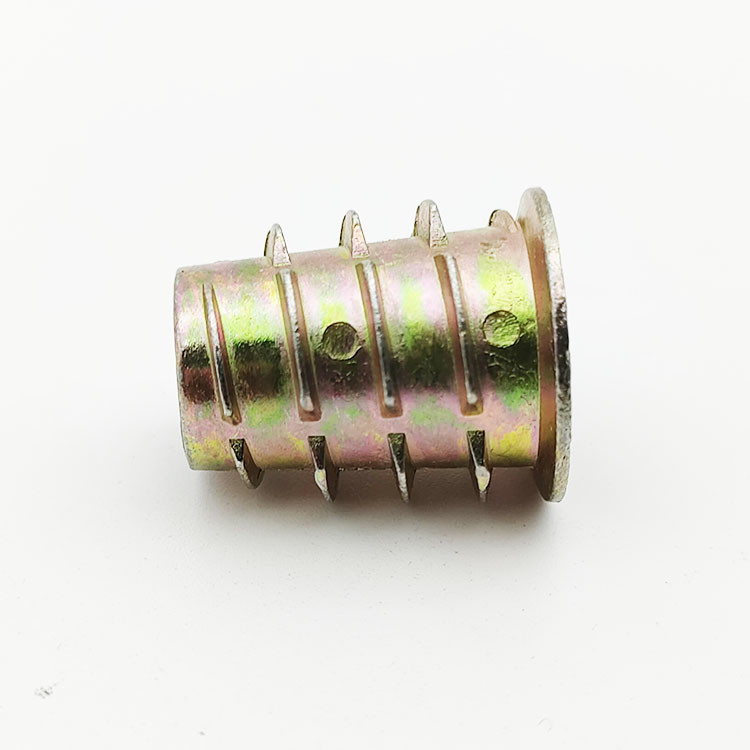

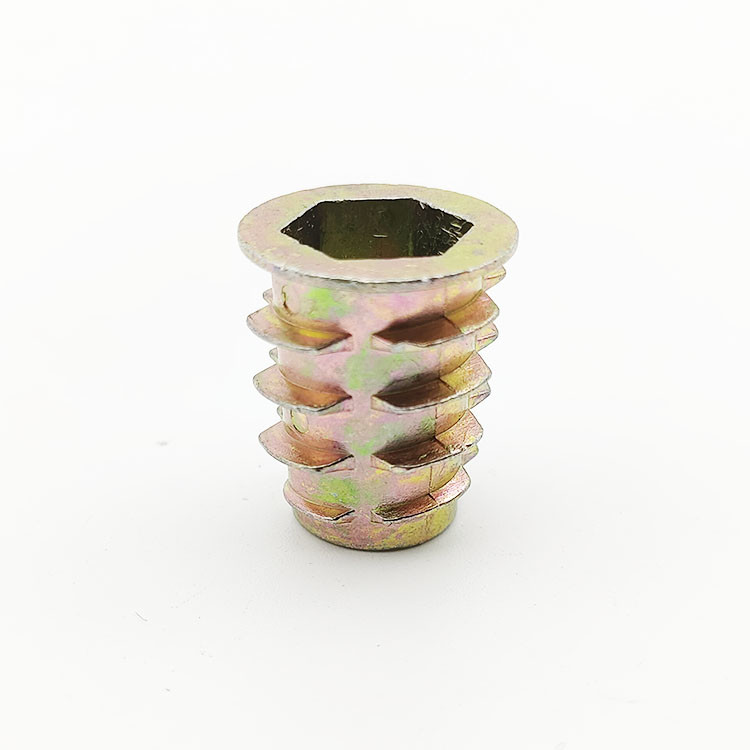

1/4 5/16 3/8 Zinc Alloy Furniture Wood Nuts Hex Socket Threaded Inserts Nuts
Description
First drill a hole on the board and apply woodworking glue, screw the furniture embedded nut (inner and outer nut) into the hole, and then use the matching screw to pass through the connected piece and tighten it. Since the disassembled nuts and screws are metal parts, they will not affect the wood board and can be disassembled and assembled repeatedly.
Specification

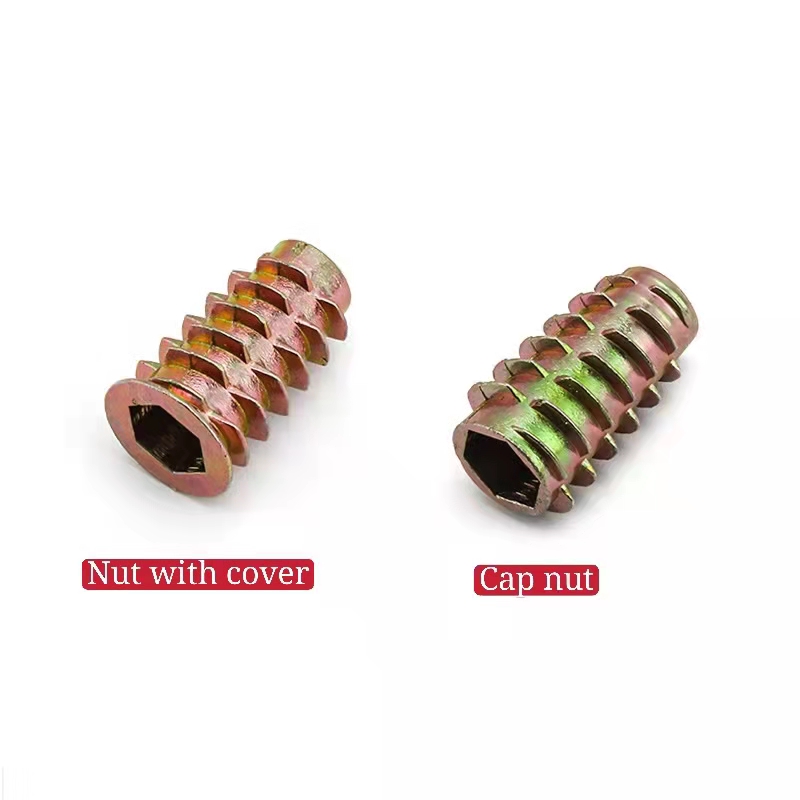

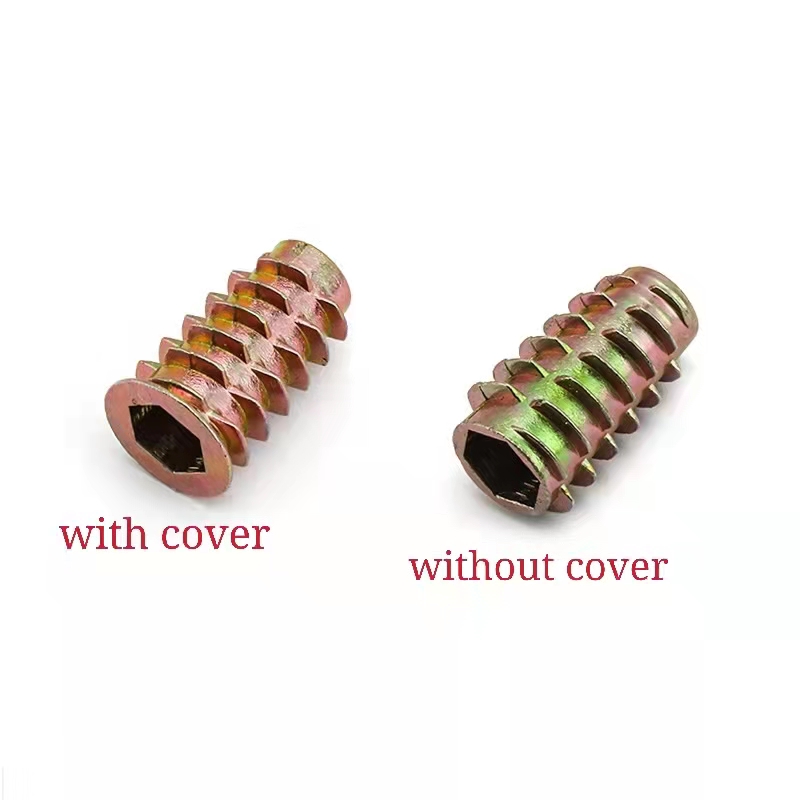

| Picture | Product Number | With cover Without cover | Internal thread mm | Length mm | Outer diameter mm | Material | Surface treatment |
|
| HJLM-YG4*8 | YES | 4 | 8 | 8.5 | National standard zinc alloy | Zinc plated, nickel plated |
| HJLM-WG4*8 | NO | 4 | 8 | 8.5 |
| HJLM-YG4*10 | YES | 4 | 10 | 8.5 |
| HJLMWG4*10 | NO | 4 | 10 | 8.5 |
| HJLM-YG4*17 | YES | 4 | 17 | 8.5 |
| HJLM-WG4*20 | YES | 4 | 20 | 8.5 |
| HJLM-YG5*10 | YES | 5 | 10 | 11 |
| HJLM-WG5*10 | NO | 5 | 10 | 11 |
| HJLM-YG5*15 | YES | 5 | 15 | 11 |
| HJLM-YG6*6.5 | NO | 6 | 6.5 | 12 |
| HJLM-YG6*8 | YES | 6 | 8 | 12 |
| HJLM-WG6*8 | NO | 6 | 8 | 12 |
| HJLM-YG6*110 | YES | 6 | 10 | 12 |
| HJLM-WG6*10 | NO | 6 | 10 | 12 |
| HJLM-YG6*13 | YES | 6 | 13 | 12 |
| HJLM-WG6*13 | NO | 6 | 13 | 12 |
| HJLM-YG6*15 | YES | 6 | 15 | 12 |
| HJLM-WG6*15 | NO | 6 | 15 | 12 |
| HJLM-YG6*18 | YES | 6 | 18 | 12 |
| HJLM-WG6*18 | NO | 6 | 18 | 12 |
| HJLM-YG6*20 | YES | 6 | 20 | 12 |
| HJLM-WG6*20 | NO | 6 | 20 | 12 |
| HJLM-YG6*25 | YES | 6 | 25 | 12 |
| HJLM-WG6*25 | NO | 6 | 25 | 12 |
| HJLM-YG6*30 | YES | 6 | 30 | 12 |
| HJLM-WG6*30 | NO | 6 | 30 | 12 |
| HJLM-YG8*10 | YES | 8 | 10 | 14 |
| HJLM-WG8*10 | NO | 8 | 10 | 14 |
| HJLM-YG8*13 | YES | 8 | 13 | 14 |
| HJLM-WG8*13 | NO | 8 | 13 | 14 |
| HJLM-YG8*15 | YES | 8 | 15 | 14 |
| HJLM-WG8*15 | NO | 8 | 15 | 14 |
| HJLM-YG8*18 | YES | 8 | 18 | 14 |
| HJLM-WG8*18 | NO | 8 | 18 | 14 |
| HJLM-YG8*20 | YES | 8 | 20 | 14 |
| HJLM-WG8*20 | NO | 8 | 20 | 14 |
| HJLM-YG8*25 | YES | 8 | 25 | 14 |
| HJLM-WG8*25 | NO | 8 | 25 | 14 |
| HJLM-YG8*30 | YES | 8 | 30 | 14 |
| HJLM-WG8*30 | NO | 8 | 30 | 14 |
| HJLM-YG10*13 | YES | 10 | 13 | 17 |
Made of high quality zinc alloy, with good room temperature mechanical properties and wear resistance, can keep thread integrity after multi times use.
