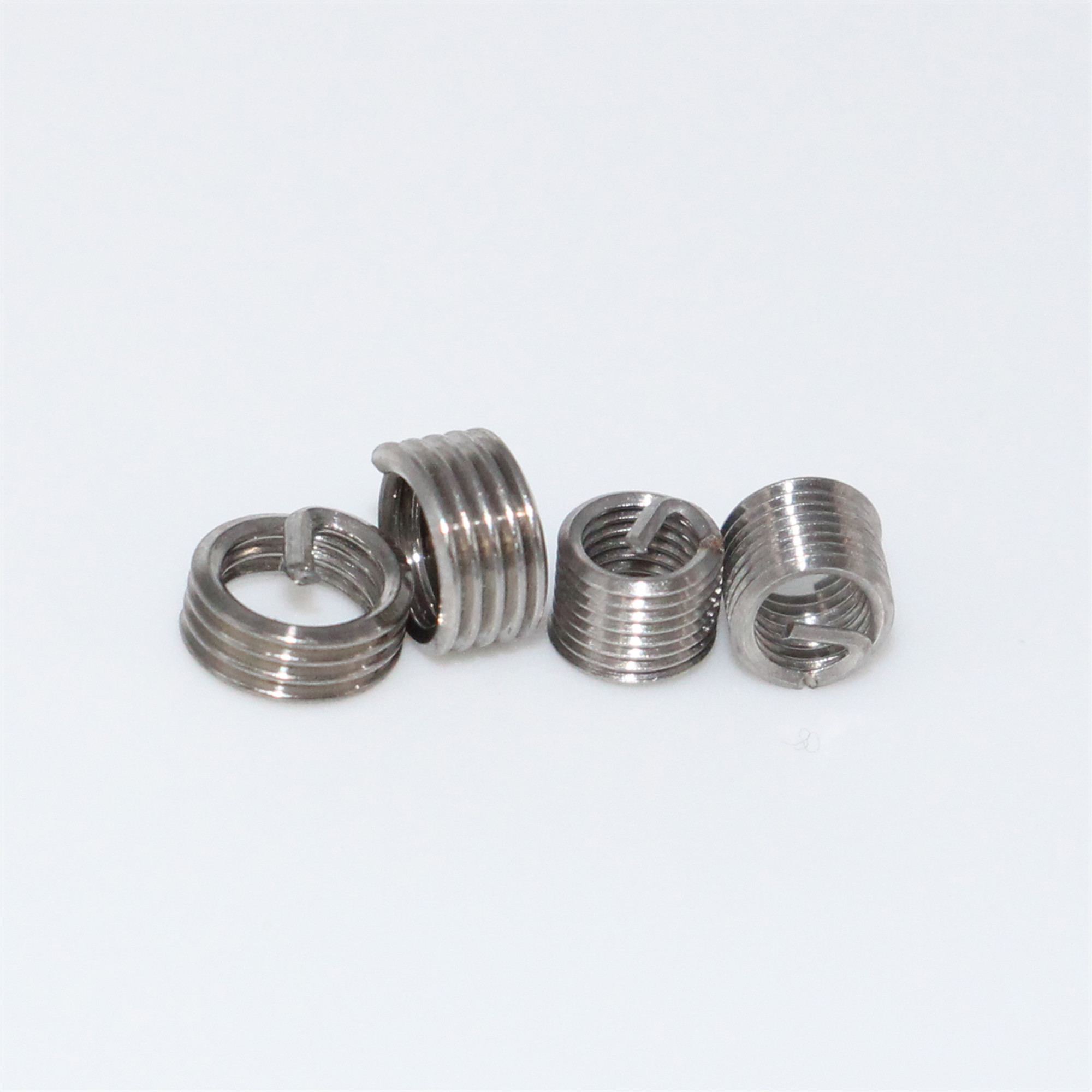

Professional Wire Thread Insert M6*1.5D Repair Thread Damage Repair Parts

  • 1
  • 2

Brand Name : AVIC-Flight

Model Number : M6*1.5D

Certification : ISO9001：2015，ROHS

Place of Origin : China

MOQ : 100pcs

Price : 0.001-0.1$

Payment Terms : T/T, L/C

Supply Ability : 1000000pcs/day

Delivery Time : 7 days

Packaging Details : 1000pcs/bag

Specifications : ISO9001:2005

Surface treatment : Plain

Product namee : Wire thread insert

Standard : ISO,GB,DIN,ANSI,BS,JIS

Free Sample : Free samples with freight collect.

Sample : Available free within 7days

Customized : OEM ODM

Contact Now

Wire Thread Insert Professional Repair M6*1.5D Thread Damage Repair Parts



Information

1. Wire thread insert is a fastener element that is inserted into an object to add a threaded hole.
2. It is made of high strength,precision,corrosion resistant and diamond wire.
3. It can enhance the connection strength and abrasion resistant,especially in Al,MG,Cast Iron and other low strength materials.
4. It can protect the threat avoiding to be broken and extend working time.

Materials Brass,Stainless Steel,Carbon steel1215,Other materials
Finish Zn/Ni/Tin/Au plating,Black Oxide,Anodizing,Passivated and so on.
Type Wire thread insert/Keylocking threaded insert/Solid threaded insert
Thread Internal thread A:as per ISO6H
Certification ISO9001:2015
Lead Time 5-10 working days
Samples Welcome

Thread inserts parameter

Options
Material 304H 321 316 Inconel X750
Standard DIN-8140 MS-21209
Model Metric M3 M4 M5 M6 M8 M10 M12 M16
British 6-32 8-32 10-32 1/4-20 1/2-13 5/8-11
Length 1d 1.5d 2d
Accuracy Green Red Golden Blue Non Customized


DIMENSION OF DIN8140 WIRE THREAD INSERTS
D P L1 d1 D P L1 d1
min max min max
M2 0.4 1d 2.6 2.8 M8 1.25 2d 9.85 10.1
1.5d 2.5d
2d M10 1.5 1d 12.1 12.5
2.5d 1.5d
M2.5 0.45 1d 3.3 3.5 2d
1.5d 2.5d
2d M12 1.75 1d 14.4 14.8
2.5d 1.5d
M3 0.5 1d 3.8 4 2d
1.5d 2.5d
2d M16 2 1d 19 19.4
2.5d 1.5d
M4 0.7 1d 5.15 5.35 2d
1.5d 2.5d
2d M20 2.5 1d 23.7 24.2
2.5d 1.5d
M5 0.8 1d 6.35 6.6 2d
1.5d M24 3 1d 28.6 29.1
2d 1.5d
2.5d 2d
M6 1 1d 7.6 7.85 M30 3.5 1d 35.2 35.7
1.5d 1.5d
2d 2d
2.5d M36 4 1d 42.1 42.6
M8 1.25 1d 9.85 10.1 1.5d
1.5d 2d

Professional Wire Thread Insert M6*1.5D Repair Thread Damage Repair Parts

Professional Wire Thread Insert M6*1.5D Repair Thread Damage Repair Parts

Professional Wire Thread Insert M6*1.5D Repair Thread Damage Repair Parts
Professional Wire Thread Insert M6*1.5D Repair Thread Damage Repair Parts


FAQ

1.Q: Are you a factory or trading company?
A: We are a professional high quality auto parts factory with more than 120 employees.

2.Q: Can you produce the goods as customized design?
A: Of course, we have enough experience to do OEM and ODM, we are welcome you send us your new design, latest style or sample. You can save time, money and own the best service from us.

3.Q: How does your company and factory do regarding quality control?
A: Quality is top priority. Highlight always attach great importance to quality controlling from the very beginning to the very end.
